Types of Machining Processes: Principles, Methods, and Applications

Machining is a fundamental part of modern manufacturing that transforms raw materials into finished products and precise components. The process of machining involves the removal of material by a controlled cutting operation. In this article, we present a detailed guide to the various machining processes that manufacturing engineers and technicians use on a daily basis.

What is Machining?

Machining is defined as the controlled removal of material from a raw workpiece by using various cutting tools, abrasives, or chemical processes. The process produces chips or waste material, and it requires careful planning to achieve a high level of accuracy and a desired surface finish. Machining is considered to be a subtractive manufacturing method, as opposed to additive manufacturing, and it is widely used in industries that require precision parts such as automotive, aerospace, and medical device manufacturing.

Types of Machining Processes

machining processes can be divided into two categories: conventional machining processes and non-conventional machining processes.

Conventional Machining Processes

Conventional machining processes are the traditional methods used in manufacturing. These methods involve a tool that is in direct contact with the workpiece and uses physical force to remove material. The techniques in this group include turning, drilling, milling, grinding, planing, sawing, and broaching. Each process uses specific machines and techniques to achieve its goal.

Turning

Turning is a process in which a rotating workpiece is shaped using a stationary cutting tool. In turning, the machine tool (typically a lathe) rotates the workpiece while the cutting tool removes material from the outer surface. Engineers use turning for the following reasons:

• Shape Production: Turning produces cylindrical shapes, tapers, threads, and grooves.
• Wide Application: Manufacturers use turning in industries such as automotive, aerospace, and woodworking.
• Modern Techniques: Modern turning often involves CNC machines that allow the process to run autonomously with programmed precision.

Key Equipment:

• Lathes (e.g., turret, engine, CNC lathes)

Example Applications:

• Creating camshafts and sign boards.
• Machining musical instruments and sports equipment.

Drilling

Drilling is a process in which a drill bit cuts into the workpiece to create holes. Engineers choose drilling because the process produces clean, vertically oriented holes in a range of materials.

• Versatility in Drill Bits: Various drill bits are available for special applications, such as pilot drilling or peck drilling that helps control chip removal.
• Industrial Use: Drilling is common in medical device manufacturing, construction, and electronics.

Key Equipment:

• Drill presses and CNC drilling machines

Example Applications:

• Producing holes for assembly purposes or aesthetic design.
• Creating pilot holes and enlarging holes using reamers and boring tools.

Milling

Milling uses a rotating multi-point cutter to remove material from a stationary workpiece. The process exists in both manual and CNC forms, allowing versatility in cutting complex shapes.

• Diverse Types of Mills: Engineers use end mills, helical mills, and chamfer mills that can be arranged in various orientations.
• Production of Complex Geometries: Milling creates gears, slots, grooves, and intricate contours that meet tight tolerance specifications.

Key Equipment:

• Milling machines (both manual and CNC, vertical and horizontal)

Example Applications:

• Machining parts in the automotive and aerospace industries.
• Producing detailed component geometries in manufacturing plants.

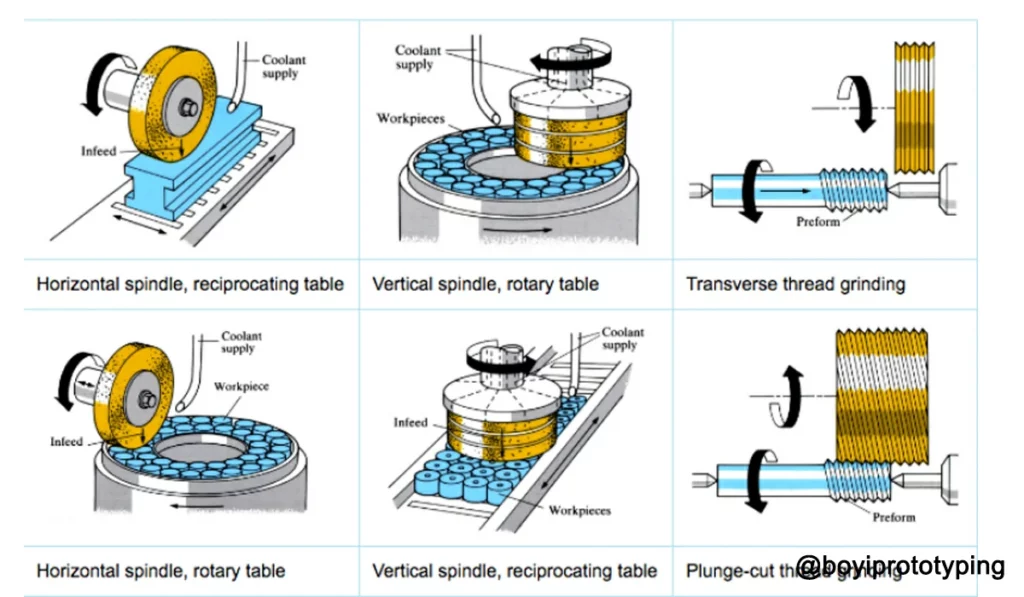

Grinding

Grinding is a finishing process that uses abrasive wheels to remove small amounts of material, improve surface finish, and achieve desired dimensional accuracy. Manufacturers rely on grinding when they require exceptionally smooth surfaces before final assembly or further processing.

• Variety of Grinding Methods: The process includes cylindrical grinding and centerless grinding.
• Focus on Precision: Grinding is essential in tool making and precision machining.

Key Equipment:

• Grinding machines (with either cylindrical or centerless designs)

Example Applications:

• Producing smooth surfaces on precision parts.
• Preparing surfaces for lapping, honing, or further finishing.

Planing

Planing is used to create large, flat surfaces on materials through linear cutting motions. This process removes material along a straight line and is often the first step in the manufacturing of large panels or heavy workpieces.

• Efficiency in Large Workpieces: Planing reduces the material volume on extensive flat surfaces.
• Subsequent Processes: Engineers use planing before finishing processes such as scraping.

Key Equipment:

• Planing machines

Example Applications:

• Manufacturing large panels used in construction.
• Preparing flat surfaces for further machining processes.

Sawing

Sawing is a cutting process that divides workpieces into smaller segments. Engineers use sawing to produce precise cuts that yield shorter lengths of material without excessive waste.

• Range of Saw Types: Manufacturers have access to band saws, hack saws, and circular saws.
• Speed Versatility: The process can work at varying speeds depending on the material hardness.

Key Equipment:

• Various sawing machines

Example Applications:

• Cutting materials for custom fabrication.
• Preparing metal or wood pieces for subsequent machining.

Broaching

Broaching is a process that uses a toothed tool called a broach to remove material in a single pass. The broach has teeth of increasing size, and the process is often executed using hydraulic presses.

• Two Main Methods: Manufacturers use both pull broaching and push broaching based on the workpiece geometry.
• Production of Key Features: Broaching is suited for creating square holes, keyways, and splines.

Key Equipment:

• Broaching machines (hydraulic press-type machines)

Example Applications:

• Machining automotive components such as gear splines.
• Creating keyways and slots in heavy equipment parts.

Additional Conventional Processes

Conventional machining also includes secondary operations such as:

• Tapping: The process in which a tap cuts internal threads in a pre-drilled hole.
• Reaming: A method used to improve the diameter accuracy of holes.
• Lapping: A finishing technique that refines the surface through rubbing with an abrasive compound.
• Shaping and Knurling: Processes that provide additional surface textures or modify basic geometries.

Engineers choose these operations based on the specific tolerance and surface finish requirements of the workpiece.

Non-Conventional Machining Processes

Non-conventional machining processes do not rely on traditional physical cutting tools. Instead, these methods remove material by using energy in different forms such as heat, electricity, chemicals, or high-pressure streams. These modern processes are known for their precision and ability to work with hard or brittle materials.

Electrical Discharge Machining (EDM)

EDM is a machining process that uses electrical sparks to erode material from the workpiece. Engineers choose EDM because it can produce complex shapes with high accuracy and with almost no mechanical tool wear.

• Spark Erosion Method: EDM uses rapid electrical discharges to create micro-cavities that remove material.
• Material Limitations: The process requires the workpiece to be electrically conductive.

Key Equipment:

• EDM machines (die-sinking and wire EDM variants)

Example Applications:

• Producing intricate injection molds and dies.
• Machining high-precision components in aerospace and tool making.

Chemical Machining

Chemical machining involves immersing the workpiece in a chemical solution that dissolves selected areas. Manufacturers choose this process when they require a smooth surface finish without mechanical deformation.

• Controlled Etching: Chemical machining uses strong acids or etchants to remove material evenly.
• Safety and Precision: Operators control the reaction to achieve the desired depth and width of the cut.

Key Equipment:

• Chemical tanks, heating coils, stirrers, and fixtures

Example Applications:

• Producing delicate screens and fine components.
• Creating detailed engravings on metal surfaces.

Electrochemical Machining (ECM)

ECM is a process that combines electrical energy with chemical action to remove material from a workpiece. Engineers prefer ECM when they need to machine extremely hard metals with superior surface finishes.

• Reverse Electroplating Principle: ECM removes material by dissolving it using an electrolytic process rather than by burning it with sparks.
• Mass Production Use: ECM is suitable for producing many parts efficiently once the initial setup is complete.

Key Equipment:

• ECM machines with conductive liquid circuits

Example Applications:

• Machining turbine blades and complex aerospace components.
• Producing parts with micro-features and a mirror-like finish.

Abrasive Jet Machining

Abrasive jet machining uses a high-speed stream of gas combined with abrasive particles to erode material from the workpiece. Operators choose this method when the workpiece is sensitive to heat and pressure.

• Non-Thermal Process: Abrasive jet machining produces minimal heat, which is ideal for materials that cannot withstand high temperatures.
• Versatility: This process can reach surfaces that are usually inaccessible by conventional machines.

Key Equipment:

• Abrasive jet machines, gas compressors, and filters

Example Applications:

• Removing parting lines from molded plastics.
• Engraving or deburring sensitive electronic components.

Ultrasonic Machining

Ultrasonic machining applies high-frequency vibrations along with a slurry of abrasive particles to remove material gently from the workpiece. Engineers choose ultrasonic machining for its ability to process brittle and sensitive materials.

• Low Amplitude Vibration: The process uses small vibrations to achieve high-precision cuts without damaging the workpiece.
• Fine Finishing: Ultrasonic machining can produce a smooth finish even on hard or delicate materials.

Key Equipment:

• Ultrasonic generators and abrasive slurry systems

Example Applications:

• Machining optical components and precision glass parts.
• Producing medical device components with tight tolerances.

Laser Beam Machining (LBM)

LBM utilizes a focused laser beam to melt and remove material from the workpiece. The process is highly flexible and can be used for both cutting and drilling applications.

• Heat-Based Cutting: The laser beam rapidly heats and vaporizes the workpiece material.
• Complex Geometries: LBM is ideal for intricate shapes and small details because the beam can be focused very finely.

Key Equipment:

• Laser cutting and drilling systems

Example Applications:

• Marking, engraving, and trimming of steel parts.
• Producing intricate designs in electronics and medical equipment.

Additional Non-Conventional Methods

Other non-conventional methods that manufacturers use include:

• Water Jet Machining: This method uses a high-pressure water stream, often mixed with an abrasive, to cut materials without generating heat.
• Ion Beam Machining (IBM): IBM alters a workpiece’s surface at the molecular level using accelerated ions. This method is used in the electronics and optical industries.
• Plasma Arc Machining (PAM): PAM uses ionized gas to cut through hard metals. It is favored for its clean, precise cuts on stainless steel and similar materials.
• Electronic Beam Machining (EBM): EBM focuses electrons to remove material from very small, delicate areas. It is typically used for micro-finishing operations.
• Micro Machining: This specialized process includes micro turning, micro milling, and micro grinding and is used to produce components at a micron level with extreme precision.

Conventional vs. Non-Conventional Machining

Manufacturers often face a choice between conventional and non-conventional machining methods. We compare the two types on various essential factors.

Attribute	Conventional Machining	Non-Conventional Machining
Contact Mechanism	Direct contact between tool and workpiece	No direct physical contact; material is removed by heat, erosion, or chemical reaction
Material Suitability	Best for softer, ductile materials	Best for hard, brittle, or exotic materials
Tool Wear	Tool wear is significant due to friction	Minimal tool wear due to the absence of mechanical contact
Precision	Often produces parts with higher removal rates but may have lower accuracy	Produces highly precise parts with fine control over material removal
Setup Cost	Generally lower due to the use of standard machines	Generally higher because of specialized equipment
Speed	Faster cutting speeds due to direct material removal	Slower process as material is removed at a microscopic level

Every manufacturer chooses the right process based on factors such as material properties, design complexity, cost considerations, and the required surface finish. Each process has its strengths and trade-offs that must be balanced according to the project needs.

CNC Machining Services for Custom Parts

By now, you’ve likely gained a solid understanding of various machining processes and their distinct advantages. As a leading CNC machining service provider based in China, BOYI TECHNOLOGY is your ideal partner for custom high-precision components.

At BOYI TECHNOLOGY, we operate hundreds of advanced 3-axis, 4-axis, 5-axis, and multi-function CNC machines, enabling us to handle complex manufacturing tasks with speed and precision. We ensure fast turnaround times and top-tier quality. No matter how unique or complex your project requirements are, we provide tailored machining solutions to meet your exact needs.

Contact us today and let BOYI TECHNOLOGY become your trusted manufacturing partner.

Factors Affecting the Choice of Machining Process

Choosing the right machining process is not a simple matter. Both the conventional and non-conventional methods have their benefits and drawbacks. Below is a list of key factors that engineers and manufacturers take into account when selecting the appropriate method:

• Material Type: The hardness, brittleness, and conductivity of the material influence whether a conventional or non-conventional process is best.
• Required Surface Finish: High-precision or smooth finishes may require processes such as grinding, EDM, or ECM.
• Geometric Complexity: Detailed or intricate shapes may be better served by non-contact methods like laser beam machining or ultrasonic machining.
• Volume of Production: Mass production might favor ECM or high-speed conventional machining processes, while custom or low-volume parts might need more specialized methods.
• Tool Life and Cost: The initial investment and operational cost for different methods vary. Traditional cutting tools tend to wear faster, whereas modern non-conventional equipment may require higher capital.
• Safety and Environmental Concerns: Some processes generate heat, sparks, or require the use of chemicals. Safety measures and environmental regulations influence the choice of machining operations.

Each manufacturer makes decisions by weighing these factors against the project’s requirements, ensuring that the final product is both accurate and cost-effective.

Machining Materials and Their Suitability

Different materials respond differently to machining:

Material	Suitable Processes	Notes
Aluminum	Milling, turning, laser	Easy to machine
Stainless Steel	EDM, turning, waterjet	Requires rigid setup and cooling
Plastics	Milling, drilling, sawing	Low tool wear, risk of melting
Titanium	EDM, ultrasonic, waterjet	Hard to machine traditionally
Composites	Waterjet, ultrasonic	Avoid heat to prevent delamination

Applications Across Industries

Machining touches nearly every industry:

• Aerospace: Precision parts, turbine blades, fasteners.
• Medical: Surgical instruments, implants, prosthetics.
• Automotive: Engine components, gears, brakes.
• Electronics: Casings, cooling systems, connectors.
• Defense: Armament components, control systems.

Advantages and Limitations of Machining Processes

Every machining process has its unique strengths and weaknesses.

Advantages

• Many processes, such as EDM and ECM, offer very accurate material removal.
• NC-based processes provide consistent and repeatable results.
• Conventional processes like milling and turning can produce a wide variety of shapes and dimensions.
• Non-conventional methods can work with hard and exotic materials that are difficult to machine by traditional means.
• Finishing processes such as grinding, chemical machining, and laser machining provide superior surface qualities.

Limitations

• Conventional methods often experience significant tool wear, which increases maintenance costs.
• Some processes require the workpiece to meet specific conductivity or ductility requirements.
• Non-conventional methods may demand expensive machines and require specialized personnel.
• Some high-precision techniques, such as EDM or ultrasonic machining, operate slower than traditional methods.
• Chemical machining and other processes that use dangerous chemicals require robust safety controls.

Conclusion

Choosing the appropriate machining method based on the specific requirements of the project is crucial to ensure the highest efficiency and quality. Regardless of the machining method you choose, fast and precise manufacturing is essential. If you have project needs, BOYI TECHNOLOGY offers comprehensive CNC manufacturing services, including free DFM analysis, fast delivery, and quotes. Contact us now at [email protected].
