CNC (Computer Numerical Control) milling machines are highly versatile machines used in the manufacturing industry to perform various machining operations. They play a critical role in producing precision parts and components for a wide range of industries, including aerospace, automotive, electronics, and medical devices.
In this article, we will explore what a CNC milling machine is, its components, how it works, the types of CNC milling machines, and its applications.

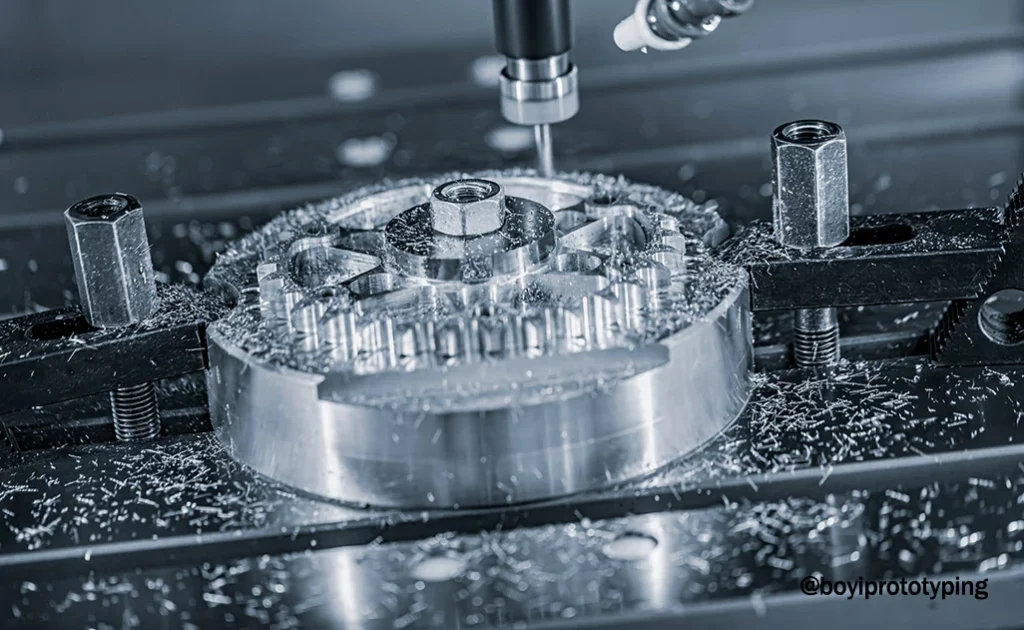

What is a CNC Milling Machine?
A CNC milling machine is a machine tool that uses computer-controlled instructions to remove material from a workpiece to create a desired shape. CNC milling machines use rotary cutters to cut and shape the material, which can be metals, plastics, or other materials. The machine is controlled by a computer that reads a coded program and translates it into precise movements of the machine’s components, resulting in accurate and repeatable cuts.

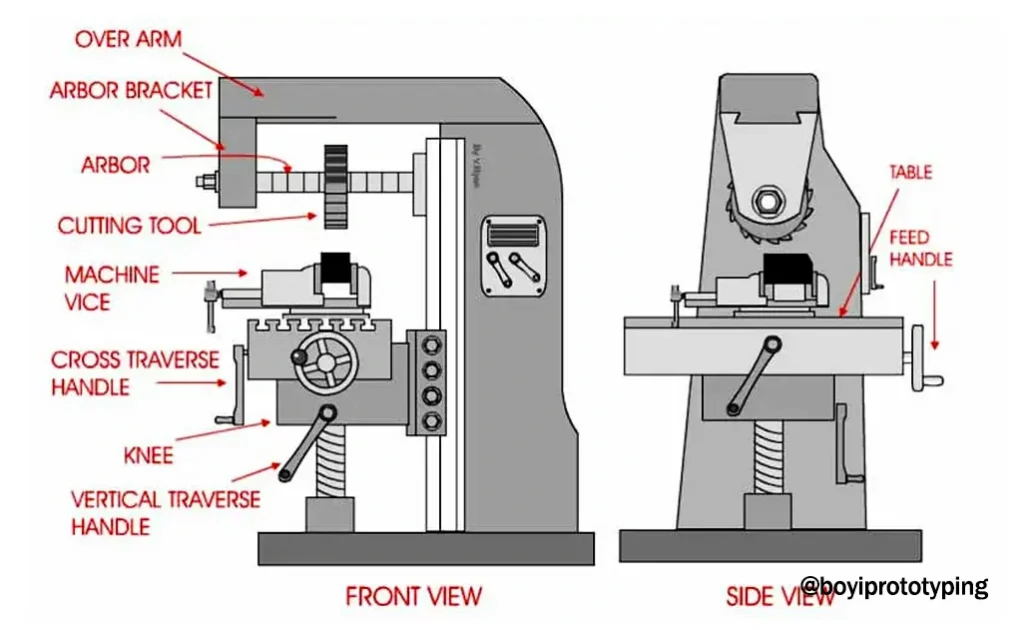

Components of a CNC Milling Machine
A CNC milling machine consists of several key components that work together to achieve precise machining:
- Frame: The frame provides structural support for the machine. It houses all the other components and ensures stability during the machining process.
- Spindle: The spindle holds and rotates the cutting tool. It is powered by a motor and can operate at varying speeds depending on the material and cutting operation.
- Cutting Tools: These are the tools that actually cut the material. They come in various shapes and sizes, including end mills, drills, and reamers.
- Worktable: The worktable supports the workpiece and moves in multiple axes (X, Y, and Z) to position the material under the cutting tool.
- Control Panel: The control panel is the interface between the operator and the machine. It includes a computer that reads the CNC program and sends commands to the machine’s motors and actuators.
- Motors and Drives: These components drive the movement of the worktable and spindle. They are controlled by the computer to achieve precise positioning and speed.

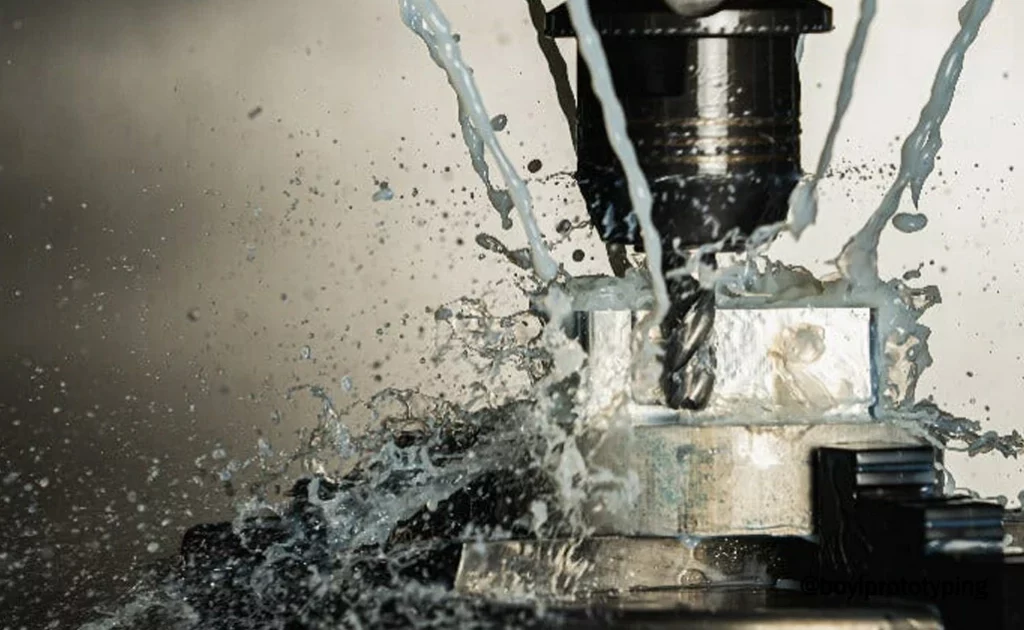

- Coolant System: The coolant system sprays a cooling liquid on the cutting tool and workpiece to reduce heat and friction, extending the life of the tool and improving the quality of the cut.
What Parts Can CNC Milling Machines Produce?
CNC milling machines, known for their high precision and flexibility, can manufacture a wide range of components with complex designs and strict tolerances. These include, but are not limited to:
- Aerospace components such as landing gear parts, aircraft fuselage structures, and aircraft engine components.
- Automotive industry parts like control panels, axles, engine components, and automotive molds.
- Consumer electronics parts such as casings, heat sinks, and connectors.
- Medical components including surgical instruments, orthopedic equipment, and prosthetic components.
- Oil and gas machinery parts like valves, pipe fittings, pumps, and mechanical seals.
- Sculptures and custom furniture designs made from materials like wood and stone, combining artistic expression with functionality.
CNC milling machines are capable of cutting various materials including aluminum, copper, steel, and wood, providing efficient, precise, and versatile manufacturing solutions across industries. Whether for small batch production or custom manufacturing needs, CNC milling machines demonstrate their critical role in modern manufacturing.
How Does a CNC Milling Machine Work?
The operation of a CNC milling machine involves several steps:
Step 1: Creating the CAD Model:
A machinist uses CNC software such as Autodesk Fusion 360, SolidWorks, or AutoCAD to create a CAD (Computer-Aided Design) model of the specific component. Once the design is complete, it serves as a blueprint for the subsequent manufacturing process.
Step 2: Converting the CAD Model for the CNC Machine:
Next, the CAD model is imported into a CAM (Computer-Aided Manufacturing) system. During this stage, the software converts the 3D model into a series of digital instructions known as G-code. These G-code commands are the CNC programming language of CNC machines, directing them on how to move, rotate, and cut.
Step 3: Setting Up the CNC Milling Machine:
During the setup process, the workpiece or block of material is securely fastened onto the machine’s worktable. This is achieved using measuring tools or touch probes. Then, the appropriate cutting tools are selected and installed in the machine’s spindle. Depending on the cutting task, various types of milling cutters may be used. Finally, the operator checks and verifies all settings, including safety measures and a simulation of the tool paths.
Step 4: Starting the Milling Process:
Once everything is set up, the G-code program is loaded, and the CNC milling process begins. The specialized cutting tool rotates at high speeds or a fixed RPM (Revolutions Per Minute), removing material from the workpiece. The milling process involves progressively removing material until the desired component shape and dimensions are achieved.
What are the Types of CNC Milling Machines?
There are several types of CNC milling machines, each designed for specific applications:
Vertical Milling Machines
Vertical milling machines are one of the most common types of CNC milling machines. They feature a spindle that is oriented vertically, which means the cutting tool moves up and down along the Z-axis while the workpiece is held stationary on a horizontal table.
Key Features:
- Vertically Oriented Spindle: The vertical orientation of the spindle makes it suitable for tasks where the cutting tool needs to penetrate the workpiece from above.
- Flat Surfaces and Cavities: Ideal for machining flat surfaces, slots, and cavities. Commonly used for making molds, dies, and complex components.
- Adjustable Worktable: The worktable can move in the X and Y axes, providing flexibility in positioning the workpiece.
Applications:
- Prototyping and Small Batch Production: Frequently used for creating prototypes and small production runs due to their versatility and ease of setup.
- Mold and Die Making: Perfect for creating intricate molds and dies with precise dimensions.
Horizontal Milling Machines
Horizontal milling machines have a spindle that is oriented horizontally, parallel to the worktable. This orientation allows for the machining of larger and heavier workpieces that require cutting along the sides or the top.
Key Features:
- Horizontally Oriented Spindle: Suitable for tasks that involve cutting from the side of the workpiece, which is particularly useful for making grooves, slots, and other features on larger workpieces.
- Arbor Support: The cutting tool is often mounted on an arbor that extends from the spindle, providing additional support and stability during cutting operations.
- Heavier Workpieces: Designed to handle larger and heavier materials due to the robust construction and horizontal setup.
Applications:
- Large Component Manufacturing: Ideal for producing large components such as gears, shafts, and heavy-duty machinery parts.
- Heavy Milling Operations: Used in industries where heavy milling is required, such as automotive and aerospace.
5-Axis Milling Machines
5-axis milling machines are advanced CNC machines that provide additional rotational axes, allowing for the machining of complex shapes and angles in a single setup. These 5 axis CNC machines can move the cutting tool along the X, Y, and Z axes, as well as rotate it around the A and B axes.
Key Features:
- Multiple Axes Movement: The additional axes (A and B) enable the cutting tool to approach the workpiece from various angles, making it possible to machine intricate and complex geometries.
- Single Setup Machining: Reduces the need for multiple setups and repositioning, increasing efficiency and accuracy.
- High Precision: Capable of producing parts with very high precision and complex contours.
Applications:
- Aerospace Components: Used for machining complex aerospace parts such as turbine blades and structural components.
- Medical Devices: Ideal for creating intricate medical devices and implants with precise dimensions.
- Complex Prototyping: Suitable for rapid prototyping of complex shapes and designs.

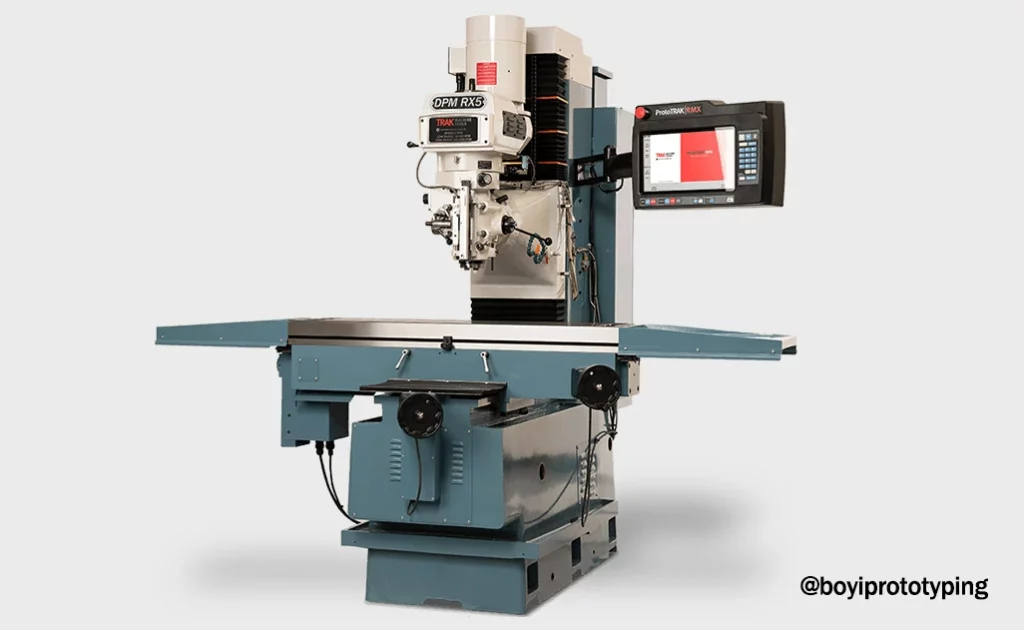

Bed Milling Machines
Bed milling machines feature a worktable that moves along the X and Y axes, while the spindle moves along the Z axis. These machines are designed to handle heavy and large workpieces.
Key Features:
- Fixed Bed Design: The bed is fixed, and the worktable moves along the X and Y axes, providing stability and support for heavy workpieces.
- Movable Spindle: The spindle can move up and down along the Z axis, allowing for vertical machining operations.
- Robust Construction: Built to handle large and heavy materials with ease, ensuring precision and stability.
Applications:
- Heavy Component Manufacturing: Suitable for producing large and heavy components such as machine bases, frames, and heavy-duty parts.
- Tool and Die Making: Used for machining large molds and dies that require precision and durability.
Turret Milling Machines
Turret milling machines have a stationary spindle and a movable worktable. The spindle is fixed, and the worktable can be moved in multiple directions, providing versatility in machining operations.
Key Features:
- Stationary Spindle: The spindle does not move; instead, the worktable moves to position the workpiece under the cutting tool.
- Movable Worktable: The worktable can move in the X, Y, and sometimes Z axes, allowing for versatile machining operations.
- Turret Design: The turret head can be swiveled and rotated to change the angle of the cutting tool, providing flexibility in machining different surfaces.
Applications:
- Versatile Machining: Used for a variety of machining operations such as drilling, boring, and tapping due to the flexibility of the worktable and turret head.
- Small to Medium-Sized Parts: Ideal for producing small to medium-sized components in various industries, including automotive and metalworking.
- Custom and Repair Work: Frequently used in job shops for custom machining and repair work due to their adaptability.
CNC milling machines come in various types, each designed to meet specific machining needs. Understanding the differences and applications of each type can help manufacturers select the right machine for their specific requirements, ensuring efficiency, precision, and high-quality production.
What is the Price of a CNC Milling Machine?
| Type | Example Models | Price Range (USD) |
|---|---|---|
| Vertical Milling Machines | Haas VF-2 | $20,000 – $250,000 |
| Horizontal Milling Machines | Mazak HCN-5000, DMG Mori NHX 5000 | $50,000 – $500,000 |
| 5-Axis Milling Machines | DMG Mori DMU 50, Haas UMC-750 | $100,000 – $1,000,000+ |
| Bed Milling Machines | Kiheung KNC-U1000 | $50,000 – $300,000 |
| Turret Milling Machines | Bridgeport Series I | $10,000 – $100,000 |
Factors Influencing the Price of CNC Milling Machines
CNC machine prices can vary widely based on specifications, size, and additional features such as automation and tool changers. The key factors influencing these prices include:
- Purpose and Standards: The intended use of the machine (such as mass production or custom production) and the required standards (such as precision and quality) significantly impact the price.
- Number of Axes: The complexity and cost of the machine are directly affected by the number of axes it has. For example, 5-axis machines are generally more expensive than 3-axis machines.
- Machine Size: The size of the machine, which depends on the parts being machined, is an important factor. Machines capable of handling larger dimensions, such as 2 meters in the X direction and 1.5 meters in the Y direction, will have higher costs.
- Pallet Changer: The need for a pallet changer (automatic or manual) can influence the price. Machines with automatic pallet changers are usually more expensive.
- Spindle Power and Speed: The required spindle power and rotations per minute (RPM) also affect the cost. Higher power and speed capabilities lead to higher prices.
- Precision Requirements: The precision requirements of the machine greatly influence the price. For example, a machine with 50-75 micron accuracy might cost around $150,000, while a machine with 3-5 micron accuracy (known as a “mother machine”) could cost over $1,000,000.
- Materials and Machining Requirements: The types of materials to be machined and the required cutting tools impact the overall cost.
- Additional Systems: The needed CTS system, size, and CNC control systems (such as Fanuc or Siemens) are other significant factors affecting the price.
For example, a machine with a spindle speed of 10,000 RPM and an accuracy of 50-75 microns might cost around $150,000. A similar-sized machine with 10-15 micron accuracy could cost between $300,000 and $400,000, while a machine with 3-5 micron accuracy might cost over $1,000,000.
What are 3-axis, 4-axis, and 5-axis Milling Machines?
Milling machines are categorized by the number of axes they can move and operate on. Here are the main types:
- 3-axis Milling Machine: A 3-axis milling machine moves the cutting tool along the X, Y, and Z axes to remove material from the workpiece. This method is ideal for manufacturing parts with simple geometric shapes and offers a lower startup cost.
- 4-axis Milling Machine: A 4-axis milling machine includes all the capabilities of a 3-axis machine plus an additional rotary axis (usually the A axis), allowing the workpiece to rotate during cutting. This setup is particularly useful for cutting around the cylindrical or side surfaces of a part.
- 5-axis Milling Machine: A 5-axis milling machine combines the movement along three linear axes with two additional rotary axes (typically A and B axes). This configuration enables the cutting tool to move and rotate in multiple directions, making it capable of machining complex geometric shapes such as aerospace components, titanium alloys, medical devices, and turbine parts.
Each type of milling machine has specific applications and advantages, chosen based on the complexity and machining requirements of the part.
What Types of Milling Cutters Are Used in CNC Milling Machines?
CNC milling machines use various types of milling cutters, each designed for specific tasks and materials. Here are the common types:
| Type of Milling Cutter | Description | Applications |
|---|---|---|
| End Mills | Used for milling slots, profiles, and contours. Available in various flute designs. | General milling of metals, plastics, and other materials. |
| Face Mills | Large surface milling tool with replaceable inserts for efficiency. | Roughing and semi-finishing of metal surfaces. |
| Ball Nose End Mills | Features a rounded tip for milling 3D shapes and contours. | Mold making, sculpting, and intricate milling tasks. |
| Corner Radius End Mills | Rounded edges reduce stress and extend tool life during cutting. | Semi-finishing and finishing operations. |
| Keyway End Mills | Specifically designed for milling keyways with high precision. | Creating precise keyways in shafts and other components. |
| T-Slot Cutters | T-shaped tool for milling T-slots in workbenches and fixtures. | Essential for creating T-slots in machine tables. |
| Formed Cutters | Custom cutting edge shapes for machining unique profiles or grooves. | Gear cutting, thread milling, and specialized operations. |
| Roughing End Mills | Serrated cutting edges for fast material removal. | Rough machining to quickly remove large amounts of material. |
Each type of milling cutter has its specific applications and advantages. Choosing the right type of milling cutter can significantly improve machining efficiency and product quality.
What is the Difference Between a Face Mill and an End Mill Cutter?
Face mills and end mills are both crucial tools in machining, but they serve different purposes:
- Function: End mills are versatile tools for detailed cuts, while face mills excel at large-scale flat surface milling.
- Design: End mills have varying flute designs for different cutting tasks, whereas face mills use multiple inserts for efficient face milling.
- Applications: End mills are used in intricate milling tasks across different materials, whereas face mills are ideal for rapid material removal on flat surfaces.
Understanding these differences helps in selecting the right tool for specific machining needs.
Is it Better to Use a Fly Cutter or Face Mill When Milling Steel?
For milling steel, a face mill generally offers faster material removal rates and is more suitable for larger jobs due to its multi-insert design. However, if surface finish is paramount or for smaller-scale projects, a fly cutter might provide a smoother finish.
Choosing between a fly cutter and a face mill ultimately depends on the specific steel milling project’s scale, surface finish requirements, and budget considerations.
CNC Milling Machine vs CNC Lathe
CNC milling machines and CNC lathes are two common types of CNC machine tools, which have significant differences in their working principles and applicable scenarios:
| Feature | CNC Milling Machine | CNC Lathe |
|---|---|---|
| Working Principle | Cuts materials by rotating a cutting tool and moving the workpiece along multiple axes. | Processes materials by rotating the workpiece and moving a cutting tool along its axis. |
| Tool/Workpiece Movement | Tool is stationary; workpiece moves on the worktable. | Cutting tool is stationary; workpiece rotates on the spindle. |
| Applications | Ideal for complex contours, sculpting, mold making, and 3D part fabrication. | Primarily used for machining symmetrically cylindrical parts, such as shafts and threads. |
| Features | Capable of multi-axis machining, suitable for highly complex tasks. | Efficient for machining symmetric parts like shafts, pins, and threads. |
| Industry Uses | Found in mold manufacturing, aerospace, automotive industries for precision parts. | Automotive, aerospace, medical device sectors, especially for rotating symmetric parts. |
| Complexity of Operation | Requires extensive programming and setup time for precise machining. | Relatively straightforward, suitable for basic programming and operations. |
What are the Advantages of CNC Milling Machines Compared to CNC Lathes?
CNC milling machines offer several advantages over CNC lathes. They are highly versatile, capable of performing a wide range of operations such as drilling, tapping, and contouring, making them suitable for complex part geometries. Unlike CNC lathes, which excel primarily in cylindrical part production, milling machines can handle larger and heavier workpieces, and they are compatible with a diverse range of materials including metals, plastics, and composites. Additionally, their ability to perform multi-axis machining enables intricate detailing and complex part designs with precision, making them ideal for rapid prototyping and customization needs in manufacturing.
What are the Disadvantage of CNC Milling Machines Compared to CNC Lathes?
CNC milling machines have disadvantages compared to CNC lathes. They typically require longer setup times due to complex workpiece positioning and tool setup. Moreover, milling machines often incur higher initial costs and maintenance expenses, given their structural complexity and diverse tooling requirements.
In certain operations, such as continuous rotational tasks like threads, milling machines may be less efficient compared to lathes. Additionally, milling operations can generate more noise and vibrations, necessitating measures for noise reduction and stability. Lastly, tool changes in milling machines can be more time-consuming due to the need for multiple tool swaps.
What are the Advantages of CNC Lathes Compared to CNC Milling Machines?
CNC lathes have advantages over CNC milling machines. They offer simpler setups, resulting in quicker preparation times for turning operations. Lathes are generally more cost-effective due to their simpler structure and lower maintenance requirements. They excel in tasks requiring continuous rotational movement, such as turning and threading, with high precision. Lathes also occupy less space and generate less noise and vibration compared to milling machines, contributing to a quieter working environment.
What are the Disadvantage of CNC Lathes Compared to CNC Milling Machines?
CNC lathes have disadvantages compared to CNC milling machines. They are primarily limited to rotational operations like turning and threading, lacking the versatility of milling machines for complex shapes and multi-axis movements. Lathes may also face challenges with certain materials and require specific tooling setups for tasks like threading, which can be more complex. Setup times for non-rotational operations on lathes may be longer and less efficient compared to milling machines.
