Today, we’re diving into a crucial aspect of injection mold design that’s often misunderstood but absolutely essential for creating high-quality molded parts: shut-offs.
Shut-offs, simply put, are the areas in an injection mold where the molten plastic is prevented from flowing into certain sections of the mold cavity. They act like gates, controlling the flow of plastic and ensuring that it only goes where it’s needed. This innovative design eliminates the necessity for post-molding machining and allows for the retention of functional geometry, enhancing the overall efficiency and precision of the molding process.
Why Do We Need Shut-Offs?
You might be wondering, “Why do we need these shut-offs if the plastic just flows into the mold cavity?” First, they prevent flash, which is the unwanted plastic that sometimes leaks out of the mold. Shut-offs keep the plastic contained within the cavity, ensuring a clean, finished product. Additionally, shut-offs control the flow of plastic, helping to fill the cavity evenly and quickly, which minimizes defects like voids and weld lines.
Shut-Off Angles in Injection Mold

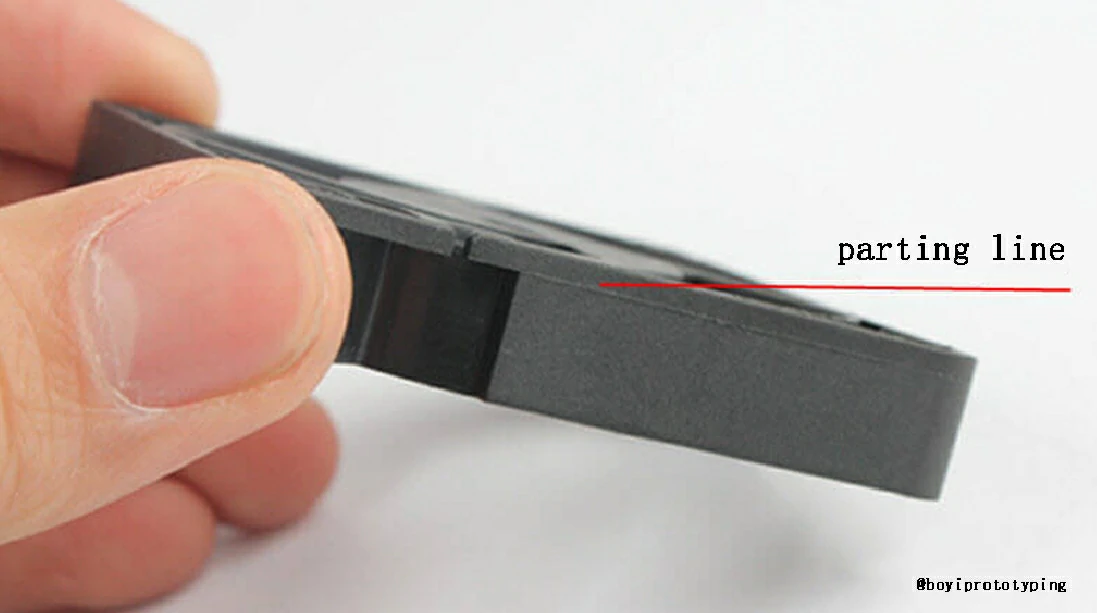

The shut-off angle is vital for preventing collisions between the core and cavity during mold closure, acting as a protector against misalignment and galling, which is the friction between metal faces. While draft angles assist in part release, shut-off angles are crucial in avoiding unwanted contact, especially when the parting line and tooling direction are parallel. It’s essential for shut-off angles to exceed 3 degrees to ensure a minimum misalignment of 0.010 inches upon closing, enhancing mold reliability and efficiency.
Please read: Essential Guide to Draft Angle in Plastic Injection Molding
Factors Influencing the Optimal Shut-Off Angle:
- High-volume production may necessitate adjustments in the shut-off angle to ensure consistency and efficiency.
- Requirements for dimensional accuracy, surface finish, and mechanical properties influence the choice of angle.
- Complex shapes or thick-walled parts typically require larger angles, while thinner parts may need smaller angles.
- The relationship between the tooling direction and parting line affects the required shut-off angle to prevent misalignment.
- The overall structure, including parting line location and runner system, significantly impacts the shut-off angle.
What Are the Different Types of Shut-Off Angles?
In the realm of injection molding, shut-off angles play a crucial role in determining the precision and quality of the final molded parts. There are four primary types of shut-off angles, each tailored to meet specific design and functionality requirements:
Saddle Shut-Off Angles
Renowned for their versatility, saddle shut-off angles are a preferred choice for creating intricate and complex part features in injection molding. They eliminate the need for additional side actions, thereby simplifying the molding process. Designers frequently utilize saddle shut-off angles to craft elements such as undercuts, hooks, and long-through holes. The angle’s design allows for a more uniform flow of molten plastic, which can enhance the part’s structural integrity and overall quality.
Radiused Saddle Shut-Off Angles
By incorporating curvature into the saddle shut-off design, radiused saddle shut-off angles offer enhanced sealing capabilities and a smoother mold closing process. The rounded edges of this type of shut-off angle minimize stress concentrations, reducing the risk of wear and tear on the mold. This, in turn, contributes to the mold’s longevity and overall durability. Radiused saddle shut-off angles are particularly well-suited for applications that require a high degree of sophistication and functionality, such as those involving thin-wall molding or intricate part geometries.
Flat Shut-Off Angles
Flat shut-off angles epitomize simplicity and efficiency in injection molding. They create a flat surface between the core and cavity, ensuring a seamless and precise seal. This type of shut-off angle is favored for its straightforward implementation and ability to provide a clean, finished look to the molded parts. Flat shut-off angles are ideal for applications where simplicity and cost-effectiveness are paramount, such as those involving large-scale production runs or parts with minimal complexity.
Wipes Shut-Off Angles
Wipes shut-off angles introduce a dynamic element to the mold closing process, utilizing a wiping motion to create a clean, polished surface between the mold parts. This type of shut-off angle reduces the likelihood of imperfections such as flash, burrs, or other surface defects. The wiping action actively contributes to a superior finish on the molded parts, enhancing their overall aesthetics and functionality.
Wipes shut-off angles are particularly well-suited for applications that require a high degree of precision and surface quality, such as those involving medical devices, automotive components, or consumer electronics.
Why Proper Shut-Off Design Matters in Injection Molding
The design of mold shut-offs is essential for controlling the flow of Thermoplastic Elastomers (TPE) and ensuring high-quality molded parts. Key considerations include:
- Improved Part Quality: A well-designed shut-off angle prevents defects like flash and short shots, ensuring uniform wall thickness and consistent dimensions.
- Precision Design: Careful crafting of shut-offs reduces the risk of edge peeling, creating sharp transitions between molded edges and substrates.
- Extended Mold Life: Proper design minimizes friction and wear on components, enhancing the lifespan of the mold.
- Cost Reduction: Achieving the ideal shut-off angle lowers production costs by improving efficiency and product quality.
- Increased Production Efficiency: Balanced shut-off angles facilitate uniform cooling, speeding up cycle times and reducing defects.
- Effective Venting: Designing for proper venting prevents trapped air, ensuring optimal part quality.
By prioritizing these factors, manufacturers can enhance product outcomes and overall efficiency in injection molding.
Optimizing Shut-Off Design in Injection Molding
When facing peeling issues in shut-off design for injection molding, implementing strategic solutions can significantly enhance part quality and durability. Heat treat shut-off steel to a minimum of 54 Rockwell hardness to ensure the durability. To reduce peeling, maintain a precise interference fit of 0.05 to 0.10 mm to accommodate cosmetic needs and the flexibility of the plastic substrate.
Design substrate edges with a sharp transition to conceal TPE edges, enhancing aesthetics and functionality, and pre-dry hygroscopic substrates and TPE pellets at 80°C (176°F) for 4-6 hours to minimize defects caused by porous surfaces.
Avoid common pitfalls such as rounded shut-offs, which can compromise precision by up to 15%, and elevated TPE geometries that resemble cliff walls, leading to ineffective shut-offs. Ensure that shut-offs are not placed directly in the mold base to maintain functionality and simplify maintenance tasks. Establish a well-defined shut-off strategy, ideally with a documented flow analysis, to mitigate molding complications. Additionally, strategically position vents at least 0.02 inches (0.5 mm) away from shut-off edges to prevent unwanted flashing.
Enhance bonding between TPE and substrates using chemical adhesion, achieving bond strengths of over 1,500 psi. Implement mechanical design techniques, such as interlocks with a depth of at least 0.010 inches (0.25 mm), to improve adhesion and abrasion resistance, ensuring durability.
For precise shut-off implementation, evaluate acceptable misalignment tolerances of 0.005 to 0.010 inches (0.127 to 0.254 mm) based on design complexity. Choose the appropriate shut-off angle type—flat wipes (minimum angle of 5 degrees), saddles (ideally 10 degrees), or radiused saddles (greater than 3 degrees)—and adhere to the 3-degree rule to guarantee secure mold closure. Regularly inspect and maintain shut-off angles every 50,000 cycles to prevent wear and ensure optimal performance, ultimately enhancing part quality and production efficiency.
Kiss-Offs vs. Shut-Offs in Injection Molding
Kiss-offs and shut-offs are key design features in injection molding with distinct functions. Kiss-offs are shallow recesses that enhance the aesthetic quality of molded parts by minimizing visible parting lines. In contrast, shut-offs control the flow of molten material, preventing defects like flash and ensuring precise closure between mold halves.
| Feature | Kiss-Offs | Shut-Offs |
|---|---|---|
| Purpose | Aesthetic enhancement and surface finish | Flow control and defect prevention |
| Design | Shallow recesses or blending features | Angled surfaces for tight closure |
| Impact on Quality | Improves visual and tactile quality | Enhances functional quality by preventing defects |
| Location | Typically placed on visible surfaces | Located at critical junctions between mold halves |
| Influence on Production | May slightly increase cycle time | Essential for optimizing cycle times and reducing waste |
Conclusion
Shut offs are integral to achieving high-quality results in injection molding. By understanding their types, applications, and benefits, manufacturers can design more efficient and effective molds. Proper implementation and regular maintenance of shut offs will not only enhance the precision of the molded parts but also contribute to overall operational efficiency.
